Tapping & Drilling Machining Centers -T Series T-5

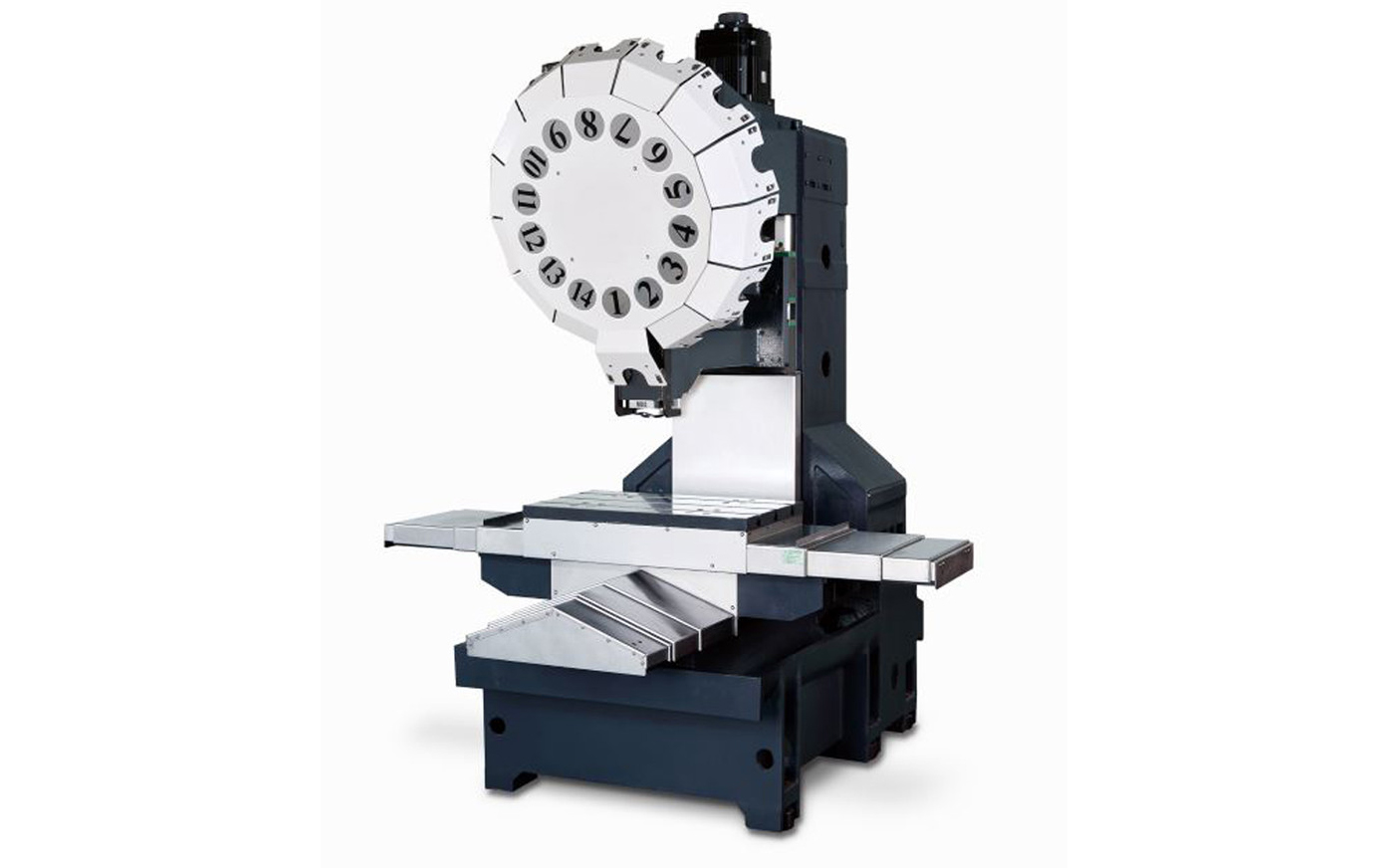

Designed with an A-line ribbing structure which can increase shock absorption effect. The casting adopted cabinet design and the inside strengthened rib has high resistance bending stiffness which can bear when starting high G movement. The structure with Meehanite cast iron, make sure high rigidity and persistence accuracy.

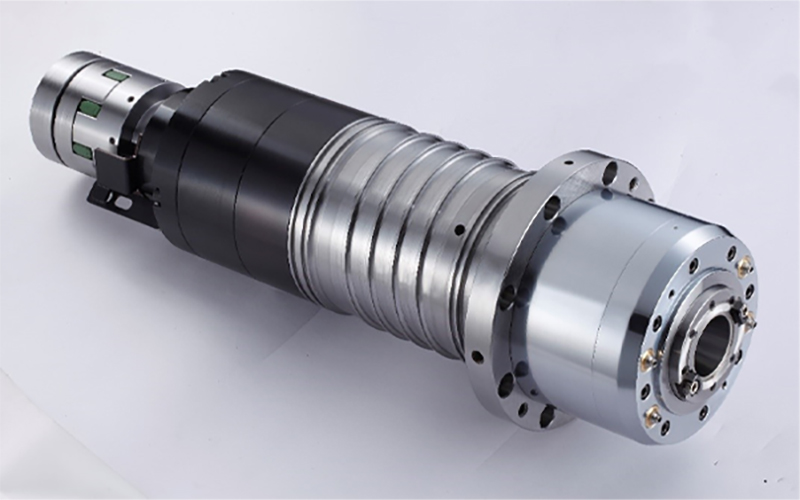

Steel ball-bearing designed with high rigidity, high precision. When high-speed processing, the spindle has a low centrifugal force and low expansion coefficient that can achieve optimal accuracy and life span.

With tool shank BT-30 and 14 tools ATC, customers can choose a servo motor system that would be an option. The tool changer features high speed, the change times are only 0.8 seconds which can reduce non-cutting time and increase production efficiency.

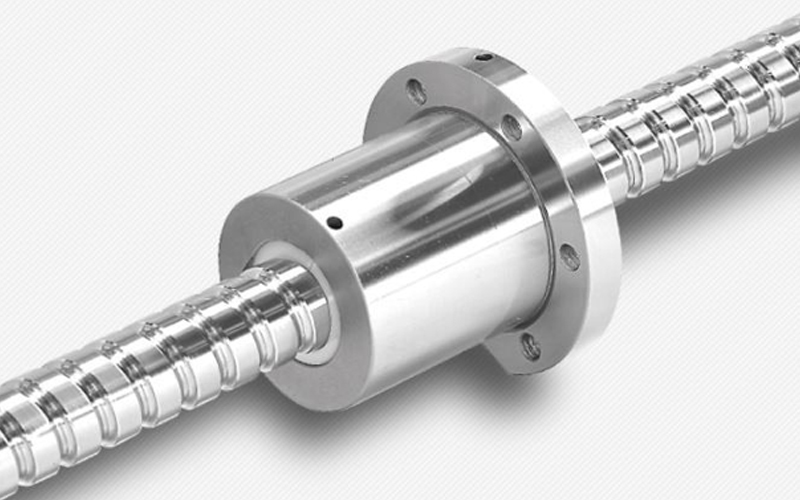

Selected large diameter (Ø 32mm）ball screw, design of return unit can absorb the voice which comes from steels balls’ impact, then greatly reduce the noise. Through auto-lubricating system can remove the effect of the thermal expansion to maintain the accuracy of operation.

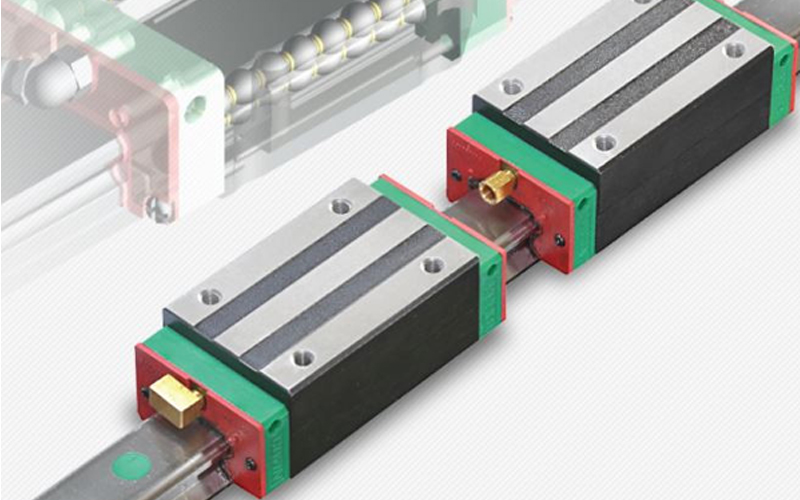

The ball type linear guideway provides an increase in rigidity especially subjected to a heavy load and also maintains high accuracy of machining also features minimum wear to extend the life-span. Suitable for high speed movement and dramatically reduce the power requirement of machine.

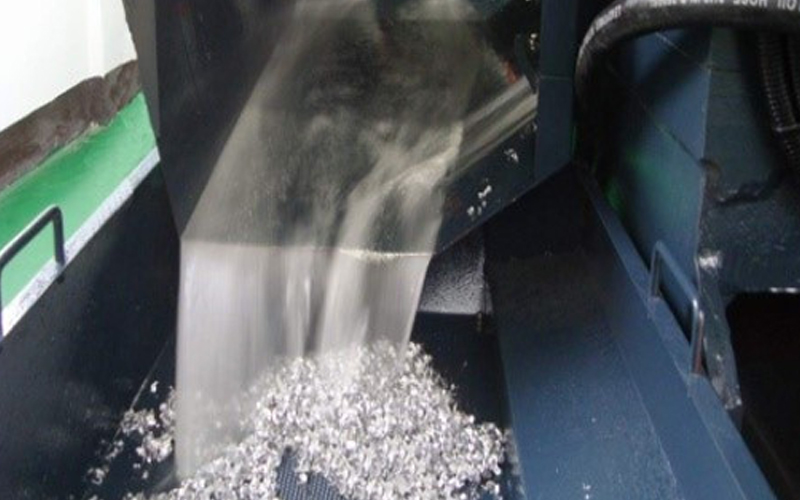

The back flushing design with optimal chip removing angle and a large flow chip flushing system.
