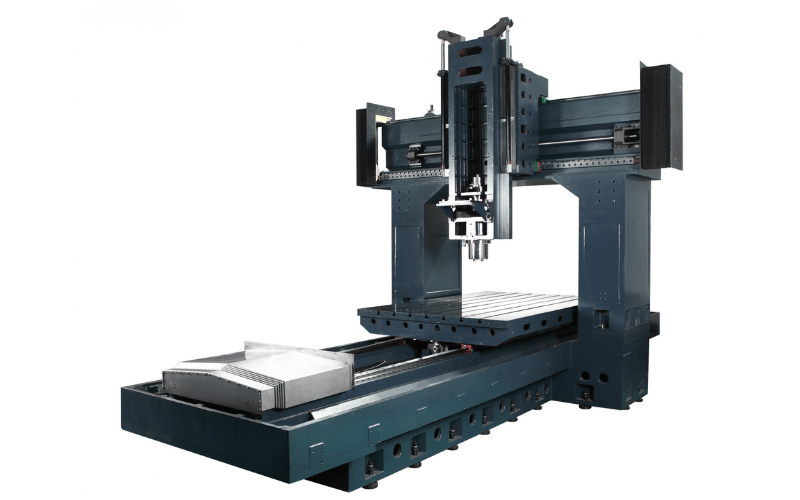

Double Column Machining Centers - DV Series DV-4232

The integrally-formed base adopts a strong rib design to efficiently reduces machining vibrations and increases the cutting stability of the equipment.

The box-type structural design with high-density ribs strengthening design to perform excellent machine body rigidity.

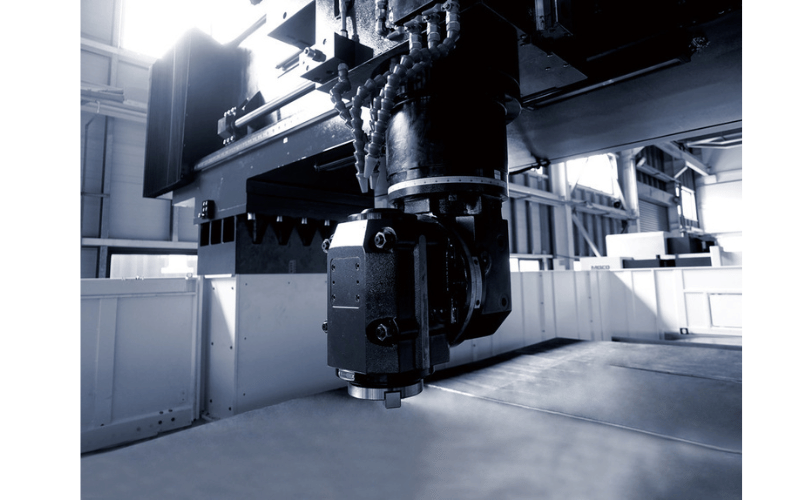

The spindle is consistent with the center of the linear guideway to get the best structural rigidity and precision.

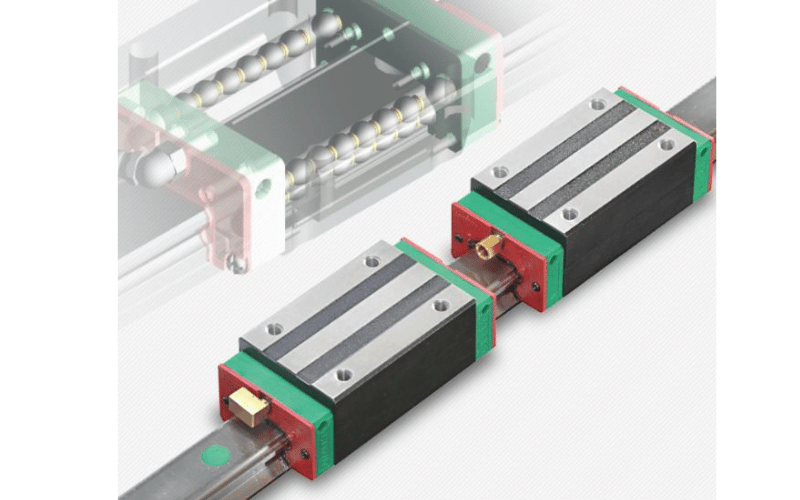

DV 20 / 24 / 28 / 32 Series adopts 3axis roller type linear guideways to ensure machine precision and high performance. Suitable for mold machining, this Series reduces cutting issues that arose from long arbors usage. Y-axis slideway is designed with maximum span: Upper slideway is placed above the beam to make sure the maximum slideway supporting rigidity.

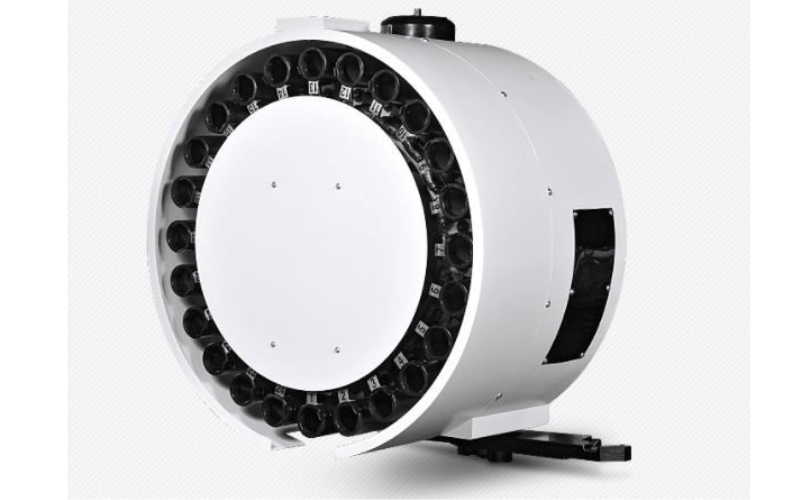

For over twenty years of tool magazine producer, it is equipped with MACO self-produced automatic tool changer for quality assurance.
The unique aluminum tool pocket design extends the life of the tool magazine. The advanced cam drive mechanism with the free-selection function of the tool is unique in the industry.

The table is fully travel-supported, with no hanging weight problem. High rigidity and lightweight worktable structure design to ensure high acceleration and deceleration cutting performance when the worktable is loaded.

DV 20 / 24 / 28 / 32 Series adopts 3axis roller type linear guideways to ensure machine precision and high performance. Suitable for mold machining, this Series reduces cutting issues that arose from long arbors usage. Y-axis slideway is designed with maximum span: Upper slideway is placed above the beam to make sure the maximum slideway supporting rigidity.
