Double Column Machining Centers - M3 Series M3-1210

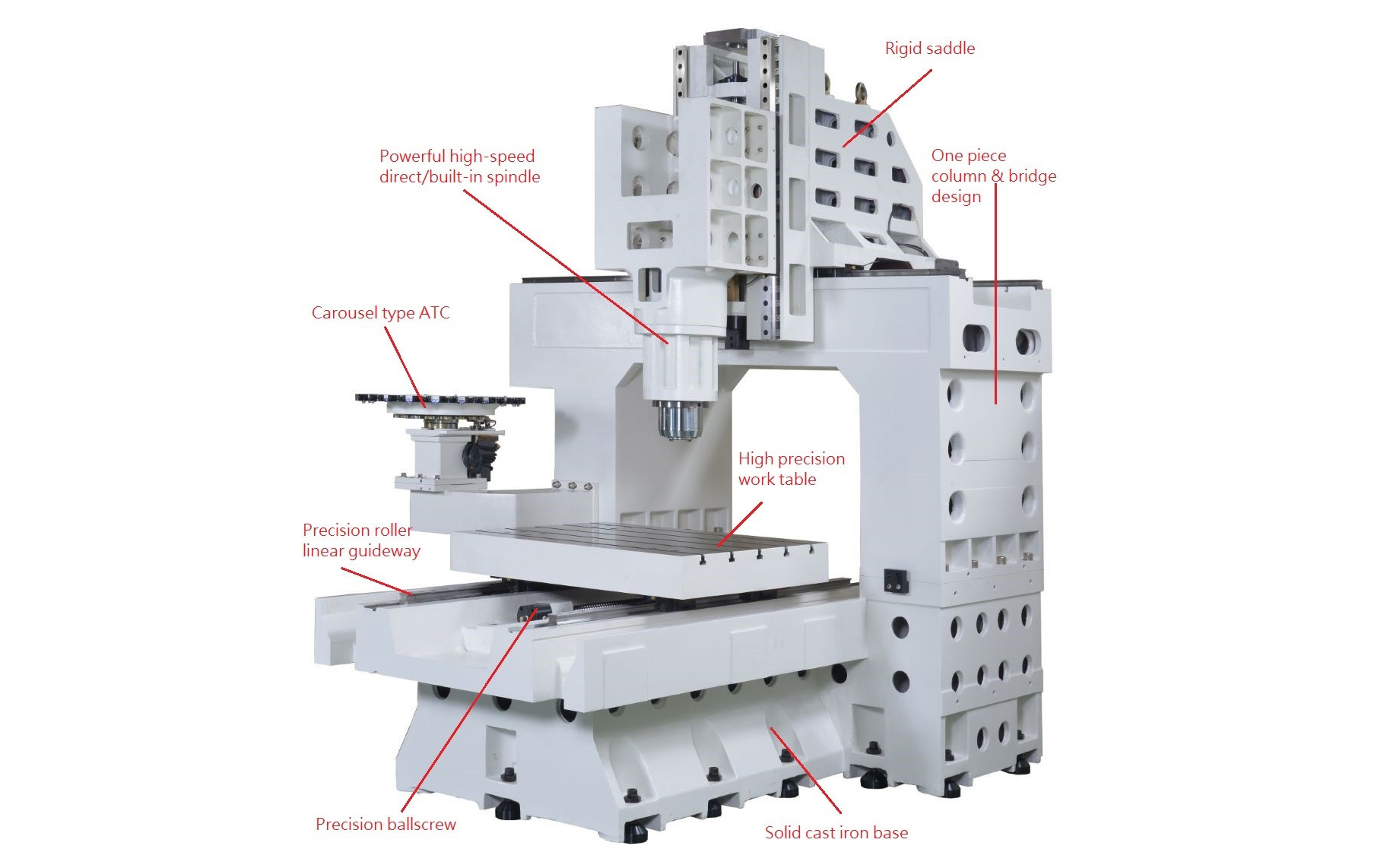

The main mechanical structures are made of Meehanite casting iron with the process of heat treatment to release the residual stress to ensure every actual miniature movement and to maintain a long-lasting accuracy.

The XYZ ballscrews have been pre-stretched. It effectively refrains from the thermal deformation and assures precise positioning accuracy and repeatability accuracy.

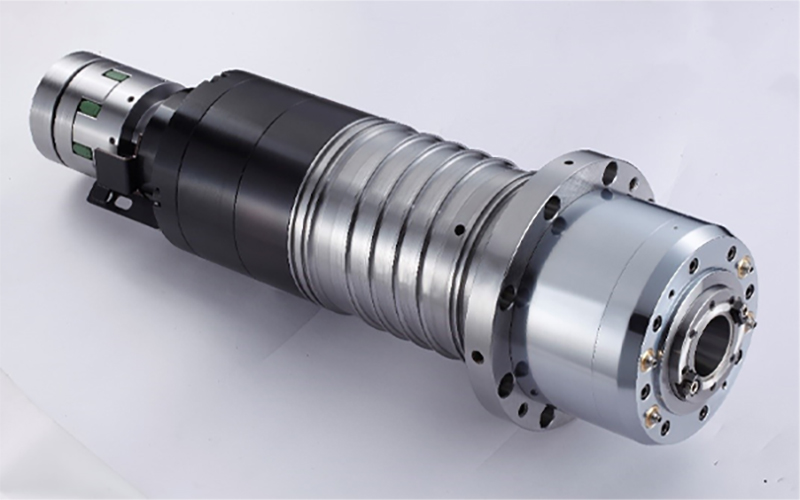

The M3 comes with a standard 15000rpm high precision and high stability Direct Driven spindle system. The built-in type high-speed spindle is available as an option.

The M3 spindle cooling system will ensure the temperature stability during spindle operation and restrains from the thermal deformation on the spindle to optimize the machining accuracy.

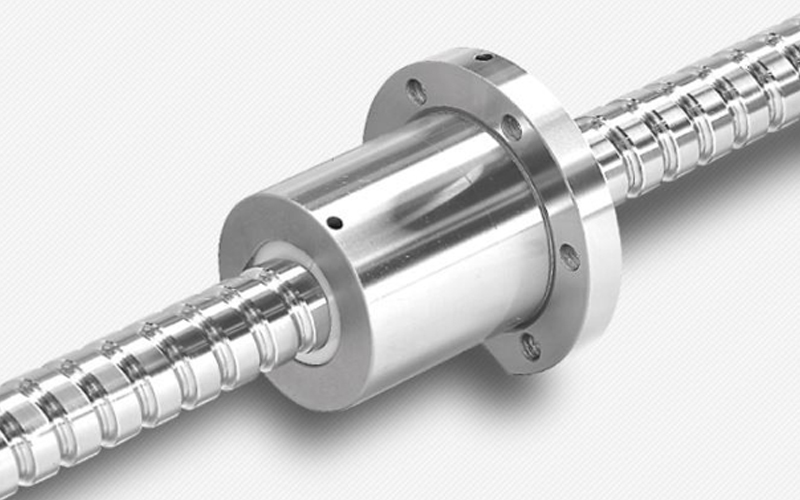

The pathway of the specialized return unit, as well as the ballnut’s strengthened design diminish the impact experienced by the balls. It can sustain peak performance in more rigorous operating environment with acceleration and deceleration.

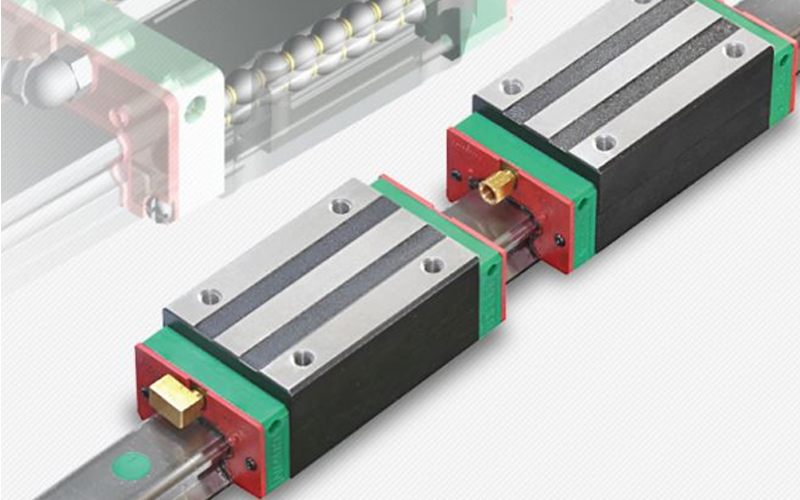

The roller type linear guideway offers rigidity and accuracy of the linear feed system in all axes. It provides superior lubrication, quieter operation, and longer running life. It is broadly use by the machine tool industry. The roller type linear guideway also offers high-speed, low noise, and reduced the dust generated during movement of the slides.
