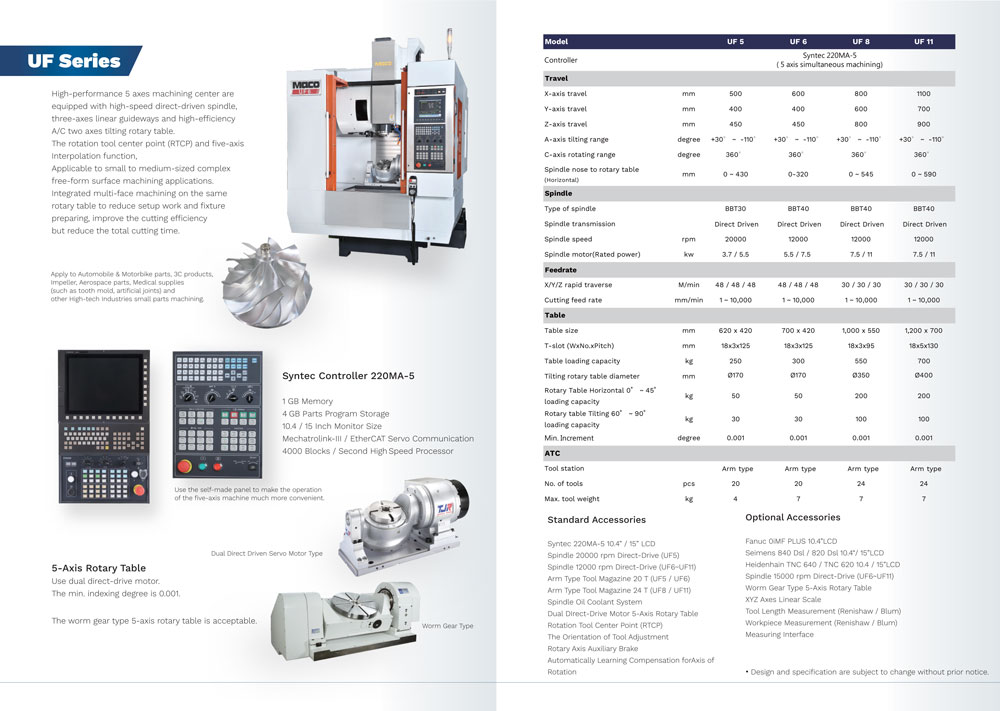

5-Axis Machining Centers - UF Series UF5

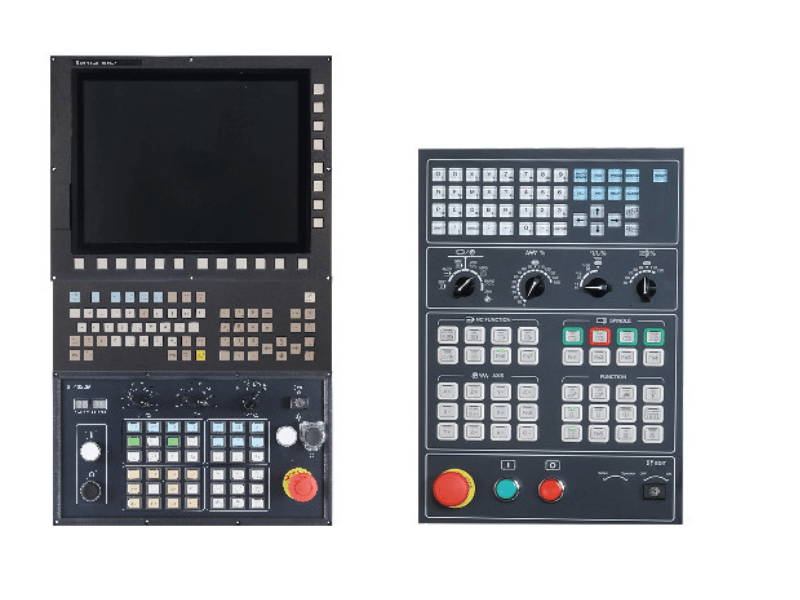

SYNTEC Controller 220MA-5
Standard with rotation tool center point (RTCP), the orientation of tool adjustment and rotary axis auxiliary brake function....and so on.
Other controller brands can be indicated.

Taiwan 4/5-Axis Rotary Table
Use dual direct-drive motor, the standard table size is φ170mm.
Min. indexing 0.001 degree.The worm gear type 5-axis rotary table is acceptable.

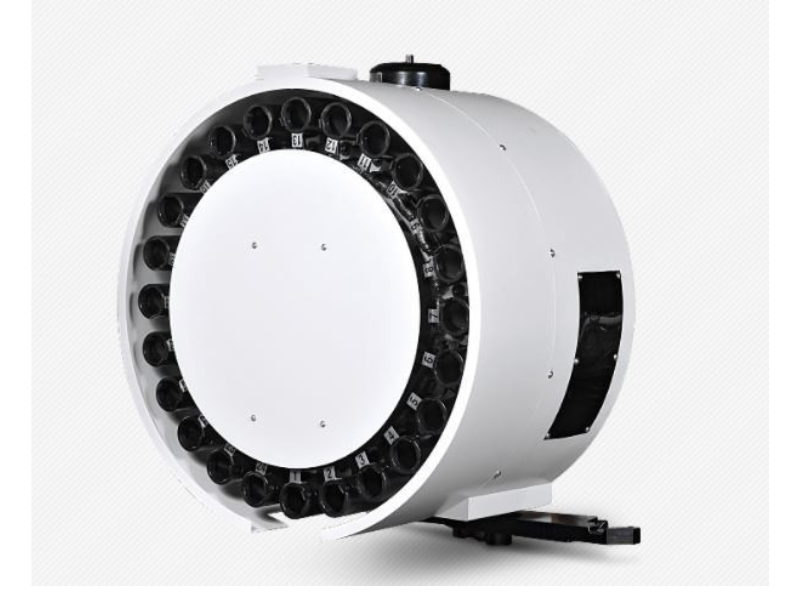

With tool shank BT-30 and 20 tools ATC, customer can choice servo motor system would be option. The tool changer features high speed, the change times is only 1.2 seconds which can reduce non-cutting time and increase production efficiency.

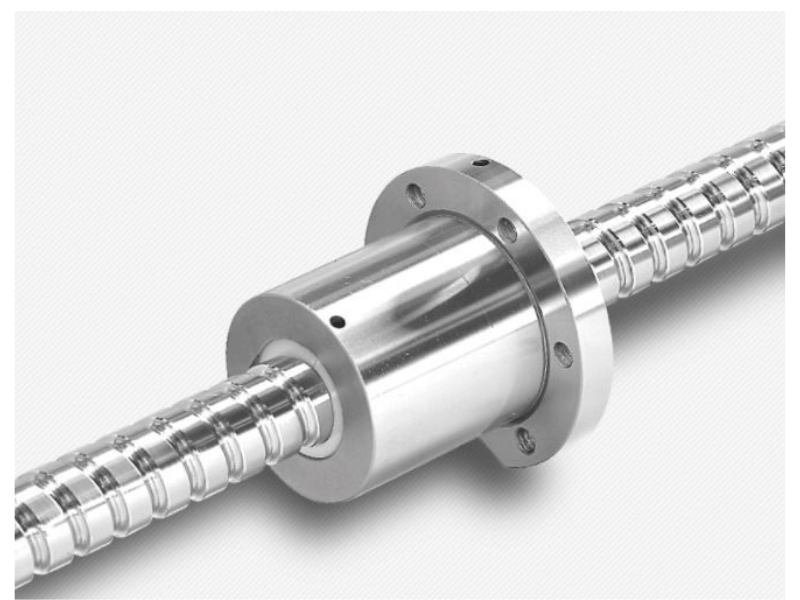

Selected large diameter (Ø 32mm）ball screw, design of return unit can absorbs the voice which comes from steels balls' impact, then greatly reduce the noise. Through auto-lubricating system can remove the affects of the thermal expansion to maintain the accuracy of operation.

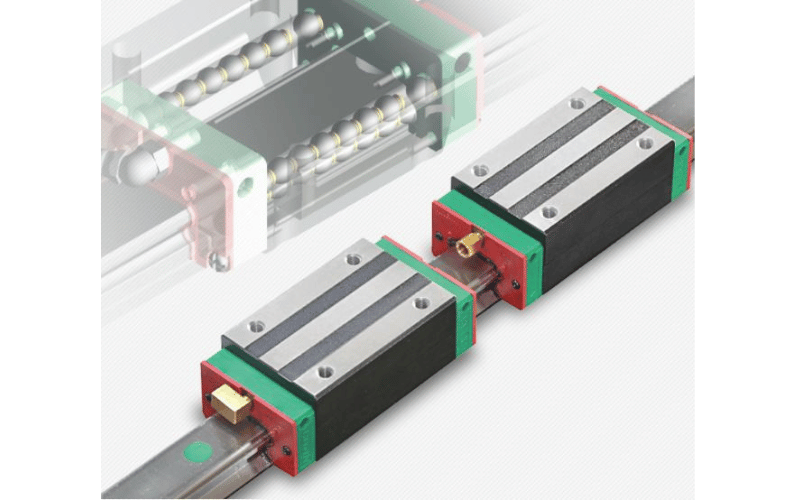

The roller type linear guideway provides an increase in rigidity especially subjected to a heavy load and also maintains high accuracy of machining also features minimum wear to extend the life-span. Suitable for high speed movement and dramatically reduce the power requirement of machine.
